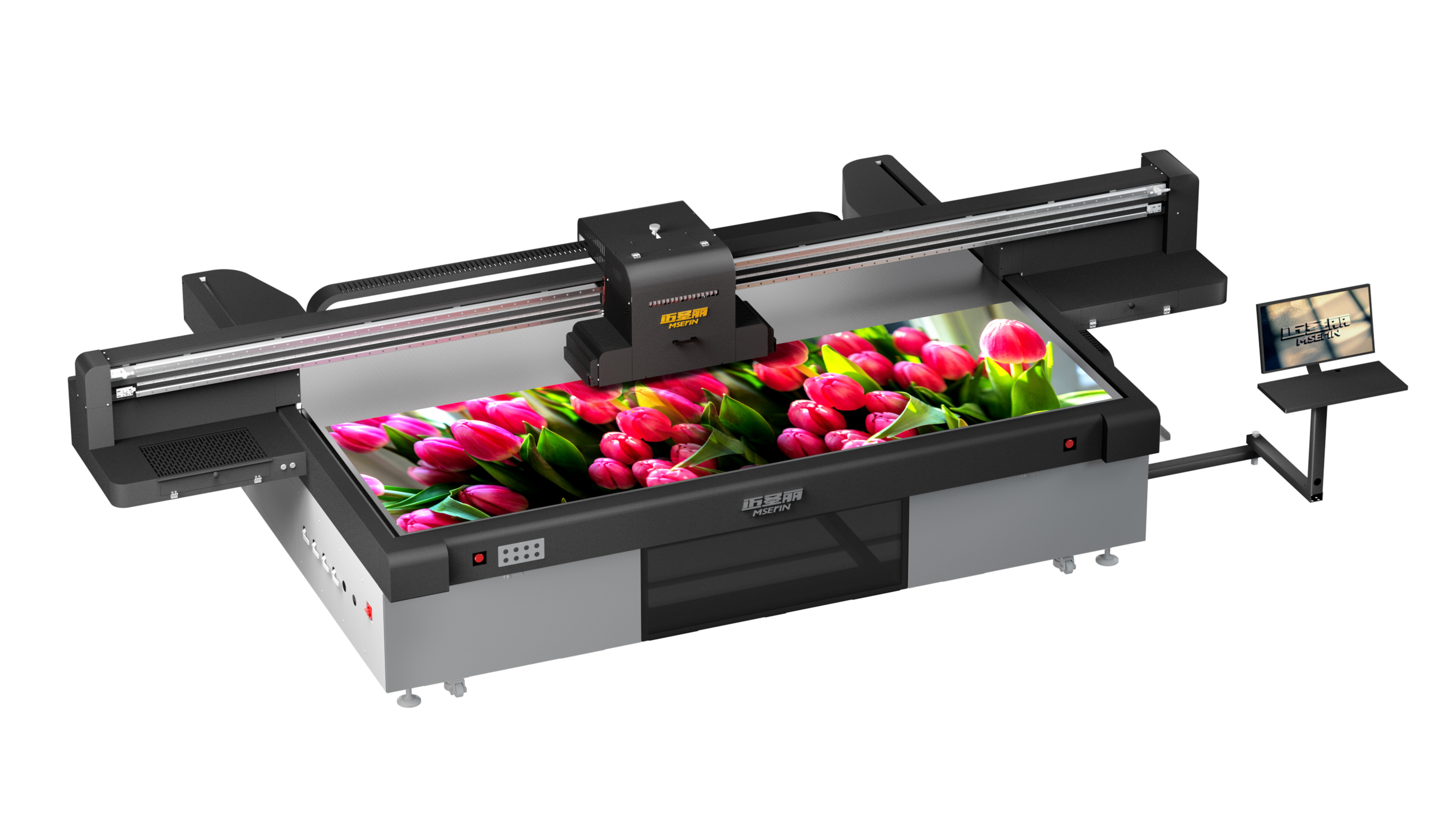

In today's era of rising demand for personalized customization and industrial-grade production, a device that can handle both flat and cylindrical printing is becoming a core tool for many enterprises to increase production capacity and expand their business. The M-3220 CCD UV Flatbed + Cylinder Printer, with its comprehensive performance configuration and flexible adaptability, opens up new creative and production spaces for users in different industries.





The core advantage of the M-3220 CCD is that it breaks the scenario limitations of traditional devices, truly realizing "one device, two capabilities". Ultra-large Format Flatbed Printing The 3260×2060mm platform size is sufficient to meet the production needs of large-format materials such as advertising printing, decorative panels, and signage. The hard anodized honeycomb aluminum plate platform, paired with white and color dual negative pressure design, ensures that plates of different materials such as acrylic, KT board, and glass can be firmly adsorbed to avoid printing offset. Precision Cylindrical Curved Surface Output It supports printing on cylindrical objects, enabling high-definition pattern printing directly on curved carriers such as wine bottles, thermos cups, and cosmetic tubes without the need for additional mold changes or equipment, providing a more efficient solution for industries such as gift customization and packaging printing.





In balancing printing quality and efficiency, the M-3220 CCD delivers an impressive performance. High-definition Imaging and Precision Positioning Equipped with a variety of industrial-grade printheads such as Ricoh GEN6/CF3/i3200U, combined with a 1200dpi CCD scanning positioning system, it not only achieves delicate color reproduction but also automatically identifies material positions, greatly reducing the error and time cost of manual alignment. Whether it is an advertising image with rich gradients or a packaging pattern with complex details, it can be accurately presented. Multi-mode Speed Adaptation It offers multiple printing precision options such as 720×600dpi, 720×900dpi, and 720×1200dpi. In 4PASS mode, the Ricoh GEN6 printhead can reach a speed of 32㎡/h, and the magnetic levitation GEN6 printhead can even exceed 42㎡/h, balancing the fineness of small-batch customization and the timeliness of large-batch production.





The long-term stable operation of the device relies on solid hardware and system support. Powerful Curing and Durable Design The LED UV lamp curing system enables instant drying after printing, improving production turnover efficiency. The aluminum print carriage, paired with imported brand dual Y-axis lead screws, combined with dual servo motor drive and reducer, ensures stability and durability during high-speed operation, reducing equipment failures and maintenance costs. Intelligent Auxiliary Functions The system-driven automatic height measurement function can real-time detect material thickness (0.1-250mm, ultra-high customizable), and with 6-zone air suction system, materials of different thicknesses and materials can maintain a flat printing state, further improving yield.



From advertising signs to packaging customization, from decorative building materials to cultural and creative gifts, the M-3220 CCD UV Flatbed + Cylinder Printer, with its all-round performance, is becoming an important driver for industry upgrading. For enterprises pursuing diversified production and wanting to break through business boundaries, this device is not only a productivity tool but also a key to opening up incremental markets.
